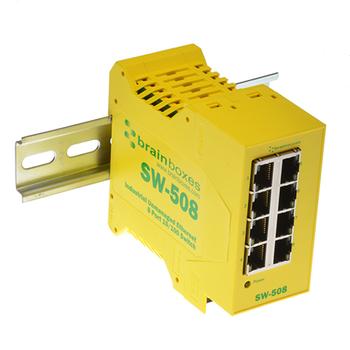

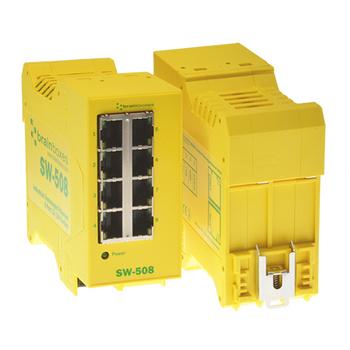

BRAINBOXES Ethernet Switch 8 ports
You have to log in to shop/see prices.
|
|
BRAINBOXES Ethernet Switch 8 ports
-
Product
Unmanaged
-
Ports
8
-
Speed
100Mbps
|
Description
Specifications
Related products
- 8 Port Ethernet Switch
- Integrated DIN Rail Mount
- Redundant dual power inputs: +5V to +30V DC
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
- No software required
- Lifetime Warranty and Support
Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
| Switch-type | Ikke styrbart |
| Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
| Basis omskiftning RJ-45 Ethernet porttype | Fast Ethernet (10/100) |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Farve på produkt | Gul |
| LED indikatorer | Ja |
| Materiale kabinet | Polyamid |
| DIN-skinne montering | Yes |
| Strømforbrug (maks.) | 1,5 W |
| Driftstemperatur (T-T) | -40 - 80 °C |
| Lagrings-temperatur (T-T) | -40 - 80 °C |
| Relativ luftfugtighed (H-H) | 5 - 95% |
| Bredde | 45 mm |
| Dybde | 115 mm |
| Højde | 99 mm |
| Vægt | 160 g |
| Bredde (emballage) | 49 mm |
| Dybde (emballage) | 160 mm |
| Højde (emballage) | 135 mm |
| Pakke vægt | 244 g |
| Lynhåndbog | Yes |
Expected in stock
30-03-2026
