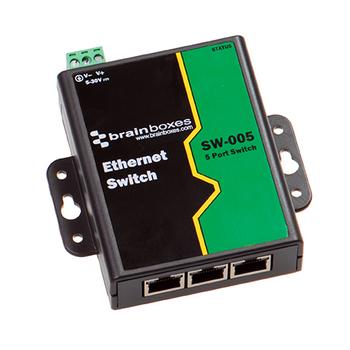

BRAINBOXES Ethernet Switch 5 ports

Light Industrial/Commercial Ethernet 5 Port unmanaged switch. Galvanically Isolated Ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, optional DIN Rail mount accessory available (see MK-048).

- No software needed: Simply plug in any ethernet cable.
- All Ethernet ports are Auto MDI/MDIX supporting straight through or crossover Ethernet cables
- Automatic detection of data transmission speed: 10 or 100 MBps 2k Byte maximum packet size – improves the efficiency of bulk data transfer and system performance
- Easy Wire Removable screw terminal block
- Wide Range Input Power: +5VDC to +30VDC
- Power consumption is optimised based on the status of the link device
- Wall mount holes compatible with MK-048 DIN mount clips
- IP30 Non-conducting polyamide case 0ºC to +60ºC/+32ºF to +140ºF temperature range

- 5 Port Ethernet Switch
- Wide Power Input: +5V to +30V DC
- Wall Mountable, or DIN rail mountable with optional accessory
- No software required
- Lifetime Support and Lifetime Warranty
