LANCOM AirLancer Extender IN-H180
You have to log in to shop/see prices.
|
|
LANCOM AirLancer Extender IN-H180
|
Description
Specifications

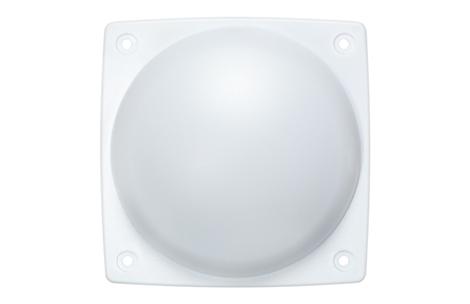

Dual-radio ceiling antenna with 180° beam angle and six connectors for optimal Wi-Fi coverage
The LANCOM AirLancer IN-Q180 ceiling antenna combines a discreet look with the best possible Wi-Fi coverage in modern buildings. When installed under a suspended ceiling the antenna fits inconspicuously into the surroundings, making it perfect for businesses, hospitals, schools and hotels. With six connectors it is ideal for operating at 5 GHz with 4x4 MIMO and 2.4 GHz with 2x2 MIMO in parallel.
Installation on suspended ceilings
Installing the LANCOM Airlancer IN-H180 under a suspended ceiling is the ideal solution for preserving a discreet interior design. Installed directly below the access point, it provides optimal Wi-Fi coverage. The antenna fits perfectly to any room with its modern and minimalist design.
- Dual-radio ceiling antenna with 180° beam angle and +3 dBi at 2.4 GHz and +5 dBi gain at 5 GHz
- 6 connectors
- MIMO technology for reliable Wi-Fi coverage under difficult conditions
- 4x4 + 2x2 MIMO operation with LANCOM dual-radio access points for parallel operation at 2.4 and 5 GHz
- Mounting kit included
- Optimized for 11ac operations
| Niveau for antennestyrke (maks.) | 5 dBi |
| Frekvensbånd | 2.4 / 5 GHz |
| Netværksstandard | IEEE 802.11ac |
| Antenne forstærkning (s.4 GHz) | 3 dBi |
| Antenne forstærkning (5 GHz) | 5 dBi |
| Impedens | 50 ohm (Ω) |
| Vandret strålebredde (2.4 GHz) | 360° |
| Lodret strålebredde (2.4 GHz) | 50° |
| Vandret strålebredde (5 GHz) | 220° |
| Lodret strålebredde (5 GHz) | 40° |
| Antenne type | MIMO directional antenna |
| Antenne tilslutningstype | RP-SMA |
| Polarisering | Dobbelt polarisering |
| Stående spændingsbølgeforhold (VSWR) | 1,5:1 - 2,5:1 |
| Montage | Loft/væg |
| Formål | Indendørs |
| Materiale kabinet | Plastik |
| Farve på produkt | Hvid |
| Driftstemperatur (T-T) | -20 - 65 °C |
| Bredde | 130 mm |
| Dybde | 130 mm |
| Højde | 45 mm |
| Vægt | 248 g |
| Antal | 1 |
| Kabler inkluderet | RG-178 |
| Monteringssæt | Yes |
