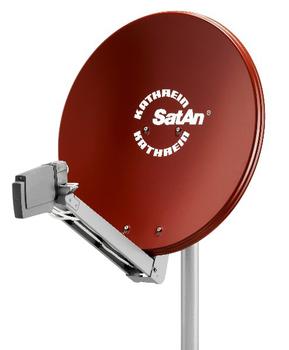

KATHREIN CAS 80ro rotbraun
You have to log in to shop/see prices.
|
|
KATHREIN CAS 80ro rotbraun
|
Description
Specifications
Features
- Consists of refl ector, feed system support and mast support
- Refl ector made of aluminium, powder coated
- Feed system support made of galvanised sheet steel, plastics coated
- All connectors (screws, rivets, discs) are made of corrosion-resistant stainless steel and zinc die-casting
- Cable holder for up to 8 coaxial cables
- Threaded clamp of hot-dip galvanised steel
- High ease of installation: Completely pre-mounted, refl ector keyhole fi xing system, zinc die-cast
wing nuts, standardised hexagon size, elevation scale on both sides, minimal support arm dimensions due to fold-down feature
- Optimal electrical data in lowest mechanical dimensions due to offset-feed
- Available in graphite-grey, white or red-brown
- TÜV design approved
- No additional components are required to be able to mount two universal feed systems to receive
the signals of satellites 3° to 4° (ASTRA 19.2°/23.5°) or 6° (e.g. ASTRA/EUTELSAT-HOTBIRD) apart on the boom For any other combination, the ZAS 90 multifeed-adaptor plate is additionally required.
| Frekvensområde | 10,70 - 12,75 GHz |
| Diameter | 75 cm |
| Bredde | 750 mm |
| Højde (maks.) | 88,4 cm |
| Vægt | 6,7 kg |
| Farve på produkt | Rød |
| Emballagestørrelse (BxDxH) | 800 x 180 x 1100 mm |
| Pakke vægt | 8 kg |
